Electric vehicle (EV) motor design continues to evolve as manufacturers target higher power density, greater efficiency, and seamless system integration.
This article reviews optimization strategies for EV motors, focusing on material innovations, control algorithms, and thermal management. It also highlights emerging testing protocols and safety standards that ensure reliable operation and support integration across next-generation powertrains.
Advanced materials drive power density improvements
Magnetic and conductive components directly impact torque, efficiency, and packaging. For example, soft magnetic alloys such as Hiperco, as shown in Figure 1, outperform conventional electrical steel, providing up to 25% higher magnetic induction and reducing core losses by about 30%.

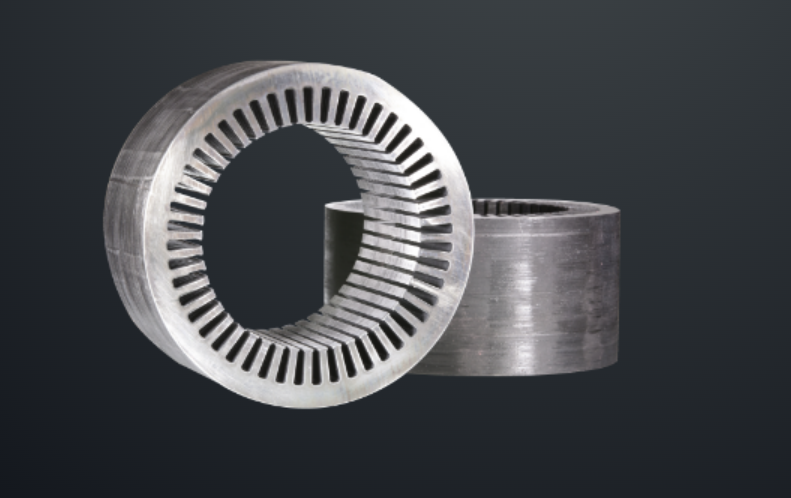

Figure 1. Hiperco soft magnetic alloys deliver higher magnetic induction and reduce core losses. (Image: Carpenter Electrification)
Motors built with advanced alloys can deliver equivalent torque in smaller housings while operating 10°C to 20°C cooler, enabling more compact packaging and improved thermal margins.
Beyond core materials, permanent magnets are essential for efficient torque generation. Neodymium-iron-boron types offer the highest magnetic energy density, supporting compact designs with high torque output. For high-temperature applications, samarium-cobalt magnets maintain stability up to 350°C, though with slightly lower strength and higher cost.
Conductive materials also play a critical role in motor performance. Advances such as aluminum alloys and copper composites reinforced with carbon nanotubes improve current capacity and thermal performance relative to traditional copper. These materials support higher current densities while withstanding thermal cycling and mechanical stress.
Structural improvements further optimize performance. Thinner electrical steel laminations reduce eddy current losses and support higher operating frequencies. Improved insulation materials with greater breakdown voltage and thermal resistance allow motors to operate at higher power levels within the same physical constraints.
Simulation complements these advances by modeling electromagnetic, thermal, and mechanical behavior in parallel. Virtual evaluation of tradeoffs helps engineers refine geometry, select optimal alloys, and predict thermal performance before physical prototyping.
AI-based algorithms enable real-time optimization
In parallel with material and structural advances, real-time motor control maximizes EV efficiency under varying load conditions. These systems continuously adjust parameters to maintain performance across diverse driving scenarios.
For example, model predictive control (MPC), as shown in Figure 2, forecasts system behavior and selects actions that minimize losses while meeting torque demands. By replacing traditional switching tables with predictive blocks, MPC reduces torque ripple and improves resilience to parameter variations and external disturbances.
Figure 2. Torque profile diagram illustrating predictive control of commutation angles (θs). (Image: ScienceDirect)
Building on MPC, machine learning (ML) enables adaptive strategies that respond to temperature fluctuations, voltage variations, and component aging. ML algorithms adjust inverter switching points cycle by cycle, often achieving combined motor and inverter efficiencies above 90%.
Real-time soft switching maintains efficiency while anticipating faults before they occur. Integrated with battery management systems (BMS) and vehicle controllers, these methods optimize powertrain-level energy flow, ensuring motor efficiency gains convert into improved vehicle performance.
Experimental approaches employ hybrid metaheuristic algorithms, such as dragonfly–glowworm swarm combinations, to tune proportional-integral controllers in real time. These methods outperform conventional particle swarm optimization and vector control by enabling finer adjustment of speed, torque, and efficiency under fluctuating drive conditions.
Dynamic drive technologies further improve efficiency by operating motors in high-efficiency pulsed regimes rather than continuously in low-efficiency regions. This approach delivers torque more effectively by modulating operation timing, particularly under variable loads common in urban driving.
Thermal management integrates with system architecture
Integrated thermal management systems coordinate heat dissipation across motors, inverters, and power electronics. As shown in Figure 3, direct oil cooling methods such as manifold dripping and shaft centrifugal cooling target stator windings and rotors.
Figure 3. Cross-section of a Honda racing EV motor using combined stator and rotor oil cooling. (Image: Racecar Engineering)
By reducing resistive losses and keeping core temperatures below 180°C, these methods enable higher continuous power output, prevent magnet demagnetization, and support more compact packaging.
Thermally conductive potting compounds further improve heat transfer from windings to housing surfaces, lowering operating temperatures by 30–50°C compared to air-cooled designs. Combined with optimized housing geometries and materials, these approaches maintain high-power operation in compact packages.
At the system level, sensor networks and control algorithms monitor temperatures in real time to optimize performance and prevent thermal derating or component failure. Powertrain-level coordination is key as higher power densities and faster charging rates increase heat generation across multiple vehicle systems simultaneously.
Notably, these integrated systems are particularly critical in commercial vehicles, dual-motor configurations, and fast-charging scenarios where thermal loads exceed the capabilities of conventional cooling.
System integration addresses complexity and safety
Alongside material, control, and thermal advances, integration and safety add another critical layer of EV motor optimization. As performance and complexity increase, coordinated approaches across the powertrain are essential, particularly when matching motors with controllers at higher voltages and power levels.
Improper pairing can damage components or negate efficiency gains, so coordination of voltage handling, thermal limits, and control algorithms is critical. Some manufacturers provide motor–controller packages — specifically designed for unified operation — to reduce risk and improve performance.
These modular eDrive units combine motors, inverters, software, and actuators into compact assemblies that reduce wiring, minimize weight, and simplify manufacturing. Integrated designs lower cost, support production scaling, and improve thermal management through coordinated heat dissipation. They also support powertrain standardization across platforms, reducing development costs while allowing customization for different performance requirements.
Safety protocols and testing
As EV systems operate at higher voltages and power levels, rigorous safety protocols are essential. Development and service testing employ protective shields, electrical interlocks, and advanced thermal monitoring to safeguard operators. Automated test systems increasingly use AI-driven anomaly detection to flag vibration issues, overheating, or electrical faults before they cause damage.
Validation extends to lifecycle durability testing, electromagnetic compatibility (EMC) checks, and real-time functional safety verification in accordance with automotive and ISO standards. These measures ensure reliable operation under temperature extremes, vibration profiles, and electrical transients.
Summary
EV motor optimization requires interdisciplinary approaches that integrate advanced materials, simulation, AI-driven control, sophisticated thermal management, and rigorous safety validation. While these advances add complexity and development cost, they deliver significant gains in power density, efficiency, and system integration for next-generation powertrains. Continued refinement of these strategies will further improve performance while addressing the cost and manufacturing challenges of large-scale EV adoption.
References
Advanced Techniques for Enhancing Electric Motor Performance and Efficiency, Carpenter Electrification
Soft Magnetic Alloys and Lamination Stacks for EV motors and Enhanced EV Performance, Carpenter Electrification
From Simulation-Driven to Optimization-Driven Electric Motor Design, MotorXP
Improving Powertrain Efficiency Through Torque Modulation Techniques in Single and Dual Motor EVs, Science Direct
Electric Motor Modeling, Analysis, and Design for E-mobility Applications, Science Direct
Permanent Magnet and WRSM – IDTechEx Explores EV Motors, IDTechEx
High-Performance Magnets in EV Motors, NewLandMag
A Hybrid Dragonfly Algorithm for Efficiency Optimization of Induction Motors, NLM
Reinforcement Learning for Motor Control: A Comprehensive Review, arXiv
