A single cell is not sufficient for some devices. To achieve the desired voltage, the cells are connected in series to add to the voltage of the cells. The cells are connected in parallel to reach the desired capacity by adding ampere-hour (Ah) to reach the desired capacity. This combination of cells is called a battery.
Sometimes, battery packs are used in both configurations together to get the desired voltage and high capacity. This configuration is found in the laptop battery, which has four Li-ion cells of 3.6 V connected in series to get 14.4 V. Each cell has one another cell connected in parallel to obtain the double capacity of 6800mAh.
Each battery connected in the configuration should have the same voltage and capacity because the weaker cell causes an imbalance. In a series configuration, a battery is as strong as the weak link in the battery chain, so the higher-capacity cell cannot charge more than the weaker cell. The weaker cell also discharges and charges first, which can cause problems like over-discharge and over-charge in the device.
Single-cell configuration

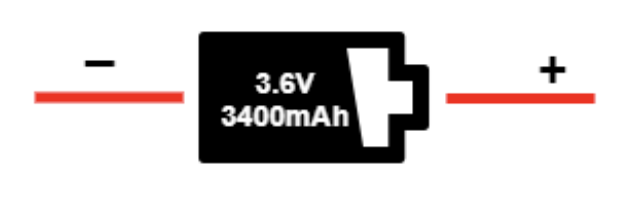

The single-cell configuration is the most straightforward battery pack. This configuration is available in a wall clock, memory backup, and wristwatch. These all are low-power devices using a 1.5 V alkaline battery. Mobile phones and tablets are also available in a single-cell configuration of a 3.6 V Li-ion battery. Figure 2 shows the single-cell configuration of the Li-ion battery.
As we have seen, the nominal voltage of a single Li-ion cell is 3.6 V. A nickel-based battery has a nominal voltage of 1.2 V, and an alkaline battery has a nominal voltage of about 1.5 V. The other lithium-based battery has a voltage between 3.0 V and 3.9 V. Li-phosphate is 3.2 V, Li-titanate is 2.4 V. Li-manganese, and other lithium-based systems often use 3.7 V and higher cell voltages.
Series configuration

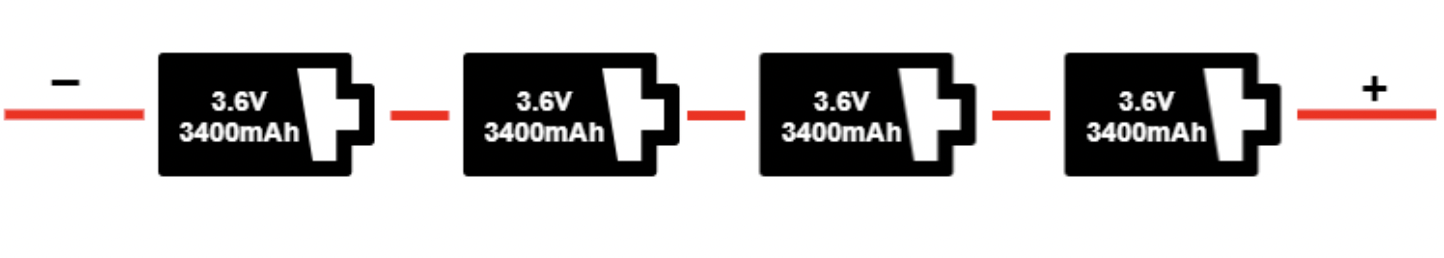

The series configuration is used where the voltage of a single cell is insufficient. The series configuration is achieved by connecting a cell’s positive to another cell’s negative, as shown in Figure 3. The four lithium-ion cells of 3.6 V connected in series will give you 14.4 V, and this configuration is called 4S because four cells are connected in series.
The number of cells can be varied according to the voltage of a single cell. A Lead-acid battery has a nominal voltage of 2 V, requiring six cells connected in series to achieve 12 V. The six alkaline batteries with a voltage of 1.5 V per cell connected in series will give you 9 V.
If the device needs an odd voltage, for example, 10 volts, then three Li-ion batteries can be connected in series. But when the device needs 8.5 volts from Li-ion, you need to know the specifications of your device. If it can handle 10 V, then it can be connected directly; otherwise, a buck or boost is used to achieve 8.5 V.
If one cell in a series is faulty, cell matching is challenging in an aging pack at the time of cell replacement. The new cell has a higher capacity than the others, which causes imbalance. That’s why battery packs are commonly replaced in units.

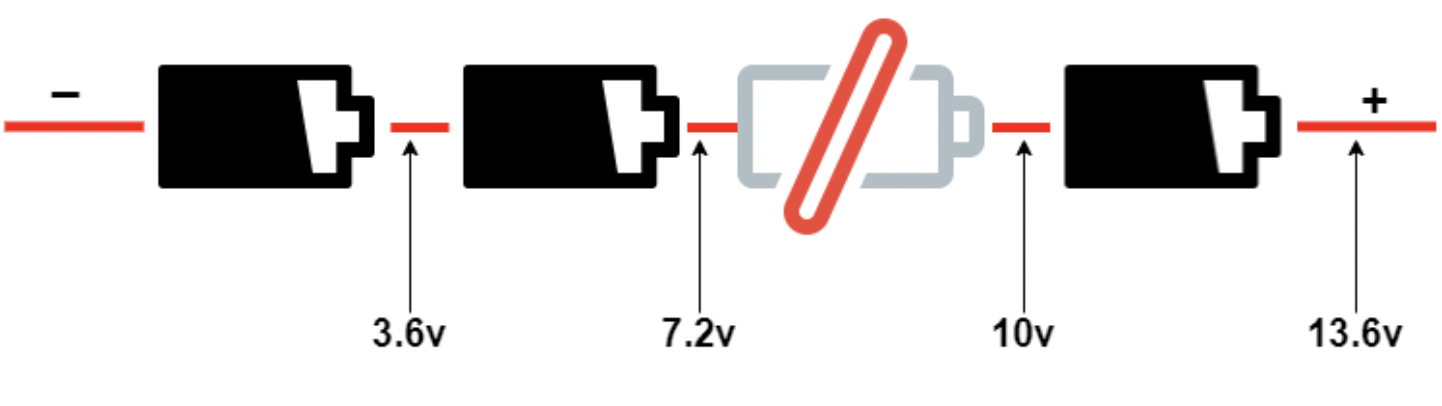

A BMS (battery management system) or its controller can determine the faulty battery by measuring the voltage at every point of the battery, as shown in Figure 4. The one cell is defective, which is giving 2.8 V instead of 3.6 V. Due to this, the battery voltage collapses, and the device will shut off sooner with a low-battery message. You can repair your battery pack by replacing this cell.
Parallel configuration

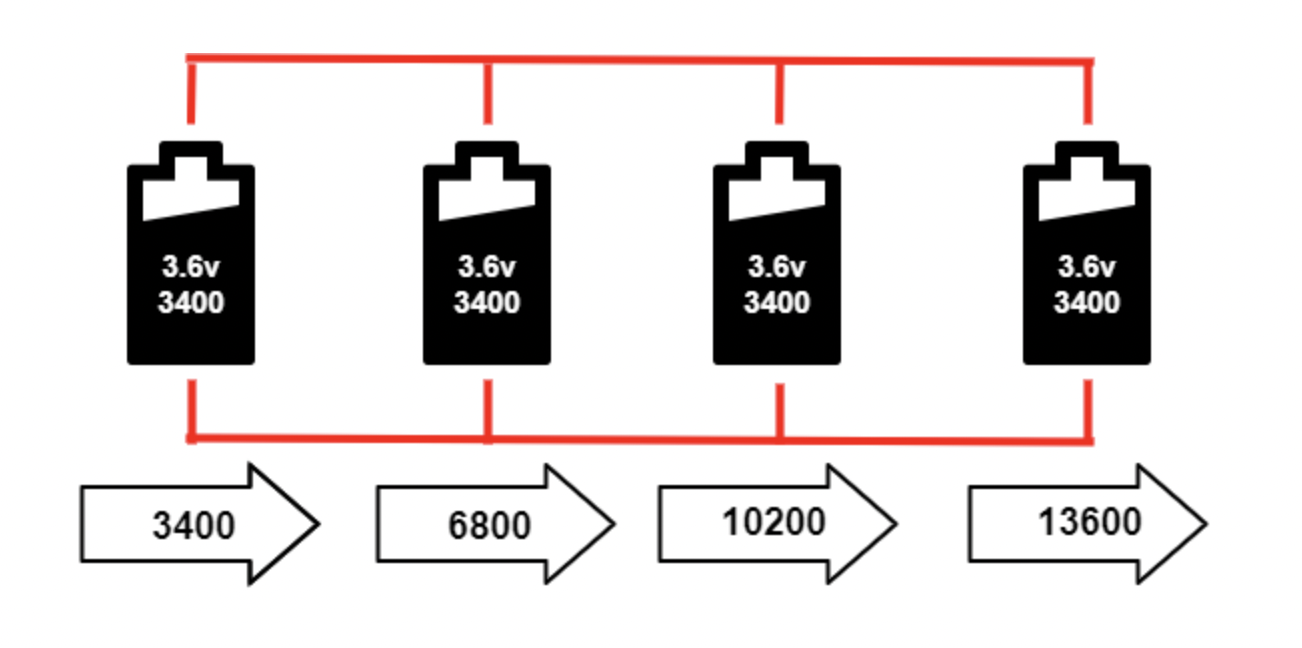

The cells are connected in parallel to fulfill higher current capacity requirements if the device needs a higher current but not enough space for the battery. That device can use the parallel configuration to fit high-current capability in a small space. The four-cell parallel design is called P4, and three cells connected in a parallel configuration are called P3. Figure 5 shows a P4 configuration. The voltage in the pack remains the same, but the current capacity (Ah) is increased.

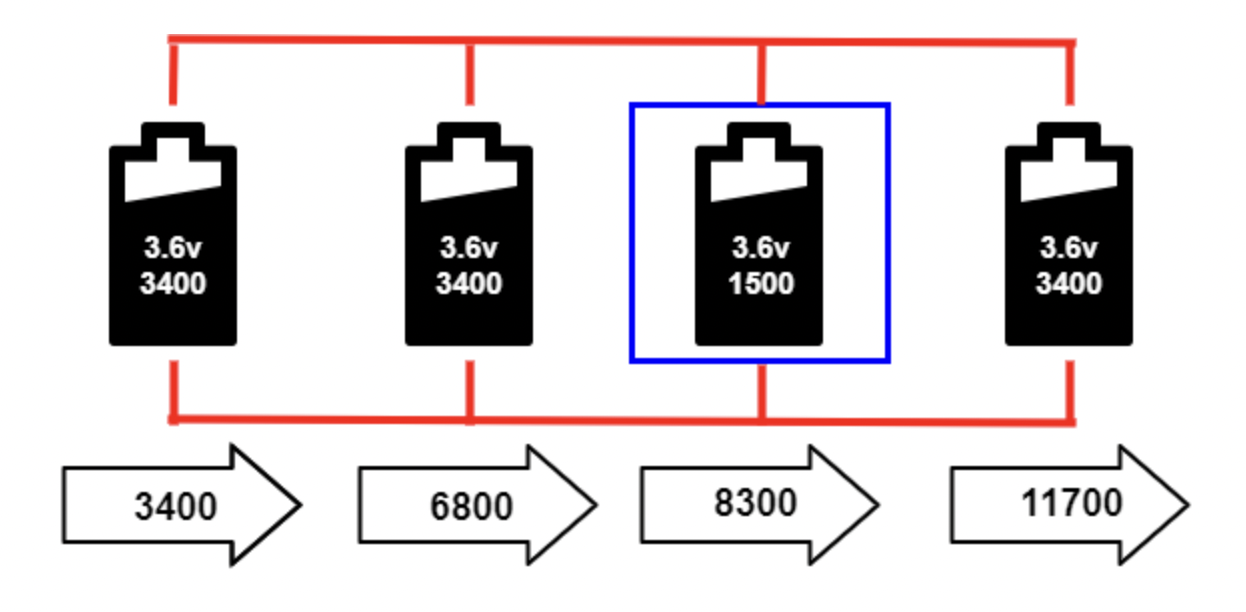

The cell that develops high resistance or opens is less critical in a parallel circuit than in a series configuration, but the failing cell will reduce the total current capacity. On the other hand, an electrical short is more severe as the faulty cell drains energy from the other cells, causing a fire. The short occurs through reverse polarization or dendrite growth. The large cell includes a fuse to disconnect the failing cell when it shorts. In Figure 6, the third cell in the blue box failed, and the capacity was reduced to 1500 mAh. It does not affect the voltage, but it decreases the total capacity.
Series parallel configuration

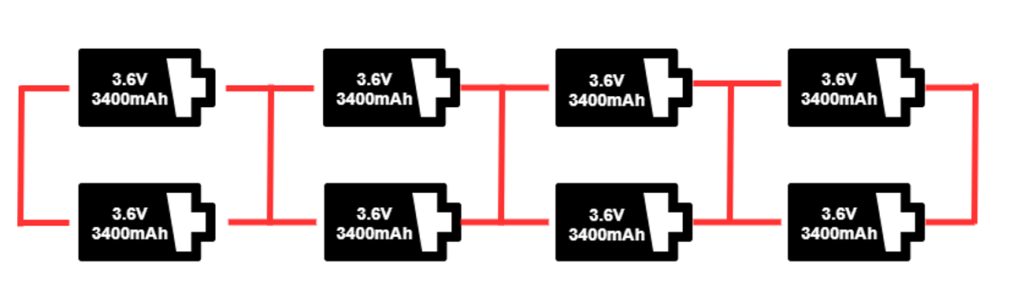

In this configuration, the cells are connected in both series and parallel. The series-parallel configuration can give the desired voltage and capacity in the smallest possible size. You can see two 3.6 V 3400mAh cells connected in parallel in Figure 7, which doubles the current capacity from 3400mAh to 6800mAh. Because these parallel packs are connected in series, the voltage doubles from 3.6 V to 7.2 V. The total power of this pack is now 48.96Wh. This configuration is called 2SP2. If the configuration consists of eight cells with the configuration of 4SP2, two cells are in parallel, and four packs of this parallel combination are connected in series. The total power produced by this pack is 97.92Wh.
Protection in batteries
The IEC 62133 harmonized the safety requirements for nickel and lithium-based batteries and cells for portable applications. The Li-ion batteries are the most dangerous battery in their category because the battery chemistry has explosive material. Battery protection is required to prevent damage due to high current discharge, overcharge, temperature rise, etc. The protection can be built into the structure of the battery, or the external protection circuit can be used to disconnect the battery.
Built-in protection in batteries

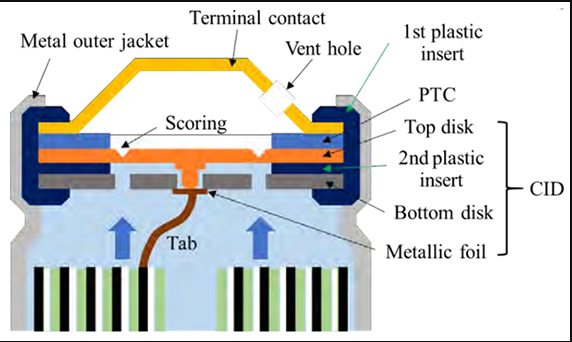

Some batteries come with safety features within the battery structure. Figure 8 illustrates the safety feature of the 18650 Li-ion cells. The PTC (positive thermal coefficient) is very low resistance at normal temperatures. But when the temperature exceeds critical conditions, its resistance rises to reduce the current flow. PTC comes under normal resistance when the temperature goes below the critical range.
The CID (current interrupt device) is a fuse-type device that permanently cuts off the circuit when the range of cell pressure, temperature, or voltage exceeds its limits. If the internal pressure increases by about 1,000kPa, the top disc disconnects from the metallic foil and disconnects the current flow. There is a vent on top to release the gas, and it can be closed again.
Protection circuit in batteries
Some 18650 Li-ion batteries come with a protection circuit. The primary function of the protection circuit is to protect batteries from over-voltage, under-voltage, over-current, and over and under-temperature. This is a part of BMS. The BMS monitors the state of the batteries for safer operations and sends the signal to the protection circuit if there is any fault in the batteries. When the protection circuit is connected to the battery’s positive terminal, it is called high-side protection. When it is connected to the negative side of the battery, then it is called negative-side protection.

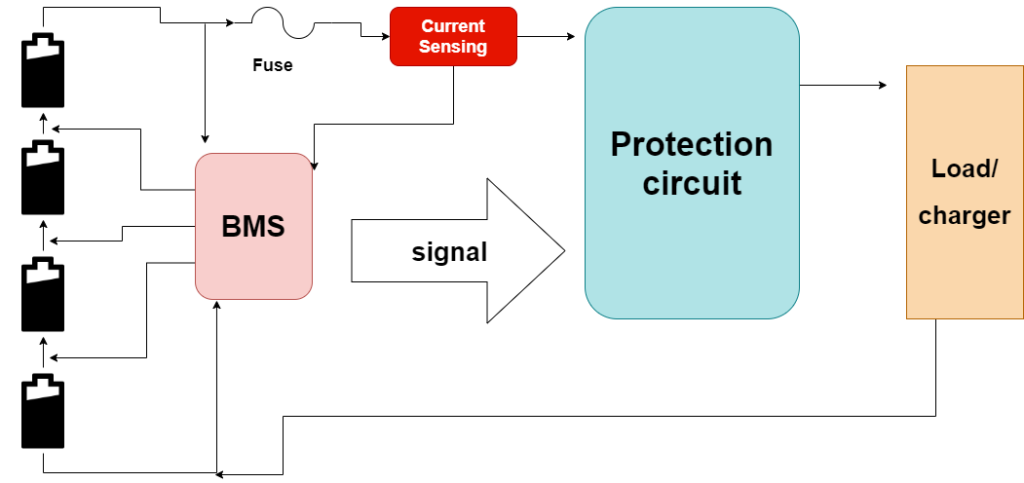

Figure 9 is the protection circuit block diagram. This is a High side protection circuit. The battery configuration is S4 (four in series), and a fuse is connected to the positive side of the battery to shut it off when the current exceeds the limits. There is BMS Monitoring every cell voltage for balancing and fault detection. The current sensing unit will sense the charge and discharge its current to BMS. If any voltage or current reading exceeds the limits, then BMS sends the signal to the protection circuit that shuts off the cell with a charger or load.
Some pre-made circuits available in the market are fixed for your voltage or current requirements. You simply have to know the current and voltage specifications of battery protection modules, or you can also build your own with MOSFETs and BMS available in the market.
